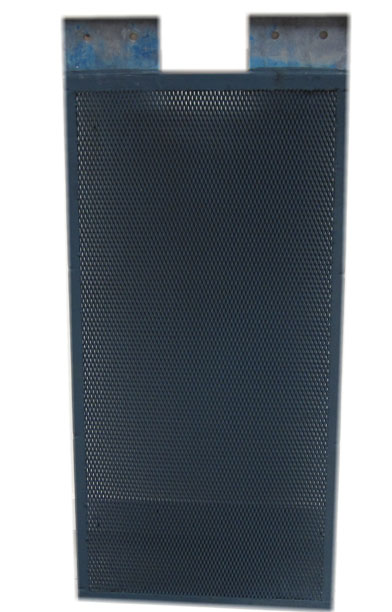

Energy Saving and Environmental Hydrometallurgy Industry AnodeTechnical Data:
PH value: <1~4
Coating Thickness：0.5-1mm
Main Coating Material: Precious Metal Element+Conductive Ceramics
Current Density: <1000A/m2
Electrolyte: Copper Sulfuric Acid+Sulfate or Nickel Sulfate+Sulfuric Acid
Service Life：Not less than 12 months
With experienced in domestic customer,has approved advantages as following：
1.Cell voltage lower than lead-based anode:0.05V-0.1V.
2.Lighter weight and more convenient to operate
3.Long service life,1-2 times life than lead alloy anode.
4.Mesh structure had been improved the liquidity of electrolyte and more uniform of current distribution.
5.Reducing the labor cost,because there is no shedding of the lead sulfate and occurrence of precipitation at the bottom of the electrolyzer, which reduce the amount of personnel,but also avoid the conventional electrolytic sediment, and then return to fire treatment to the high pollution and high energy consumption.
6.Without Sn.Sb.Ag and other ions on the coating,the solution is not produce secondary pollution.
7.High purity of cooper and nickel of the production.
8.It is applied to electric deposition of nickel,copper,cobalt etc.
Anode for domestic for refferring:
